GEELONG adjustable size plywood trimming machine

this plywood trimming machine can cut the plywood size 3*6ft and  4*8ft.the cutting width is from 900-1300mm adjustable.the length

is from 1830-2600mm adjustable.

WhatsApp: +86 157 5396 3153

plywood trimming machine is used to cut the plywood edges.it is important plywood machine.

this adjustable size plywood trimming machine can cut the plywood size 3*6ft and 4*8ft.the cutting width is from 900-1300mm adjustable .the length is from 1830-2600mm adjusatble.

the size adjustable  system has machinery type and PLC automatic type.

below is adjustable size plywood trimming machine specification:

machine model type:GLCS36-48A

Cutting length: 1830-2600mm

Cutting width: 900-1300mm

Cutting thickness: 10-60mm

Saw blade size: Φ180mm & Φ305mm

Vertical sawing speed:90m-120m/min

Horizontal sawing speed  30m-60m/min

Motor power: 40kw

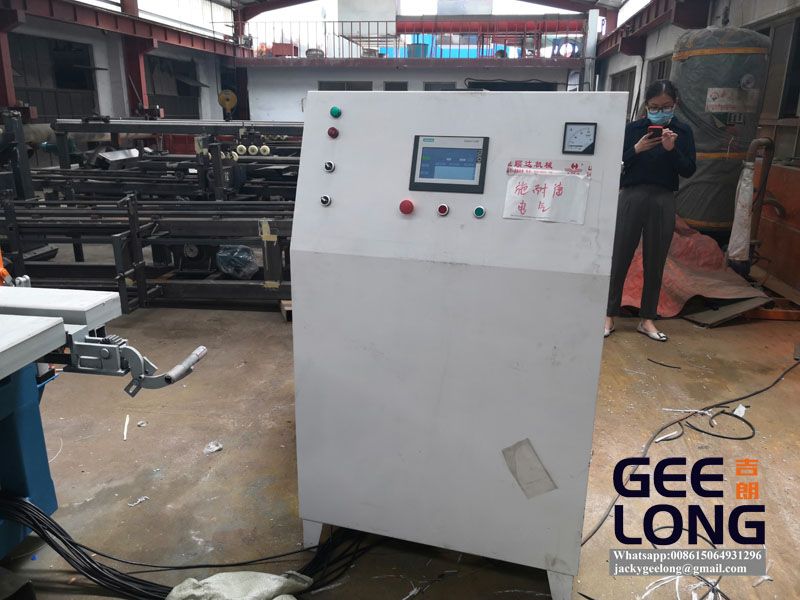

control system:Siemens PLC

table lifter:1set
