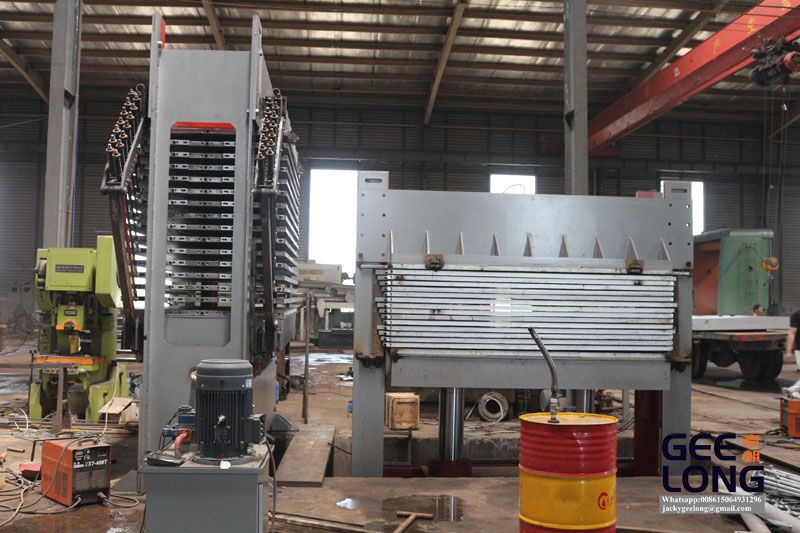

GEELONG brand new type china veneer press dryer machine

this is new type veneer press dryer machine. it is without hand arms. and it has special moisture Water discharge design.

WhatsApp: +86 157 5396 3153

this is new type veneer press dryer machine. it is without hand arms. and it has special moisture Water discharge design.it uses very less installation room.

the veneer press dryer layer quantity is customized.it can dry 0.7-1cbm veneer per hour.

below is veneer press dryer machine specifiction details:

Pressure: 2000KN

frame steel thickness:30mm

board into direction:Horizontal

 plate size: 1370x2700x42mm,

double inlet and double outlet

hot platen quantity:16pcs

Layers: 15

cylinder production place:WUXI

cylinder stroke:1050mm

cylinder quantity: 2pcs

Motor power: 15kw x 1pcs,SIEMENS Brand

machine dimension:1370*3500*3600mm

control system:DELTA PLC, Schneider brand electric components.

weight:2800kg
