Log Debarker

Home >> Products >> Log Debarker

  • wood log debarker machine

  • wood log debarker machine

  • wood log debarker machine

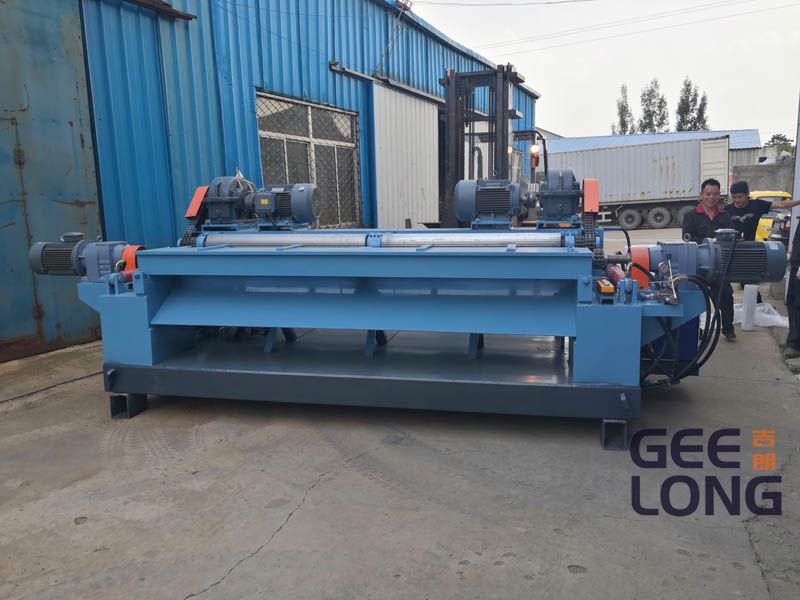

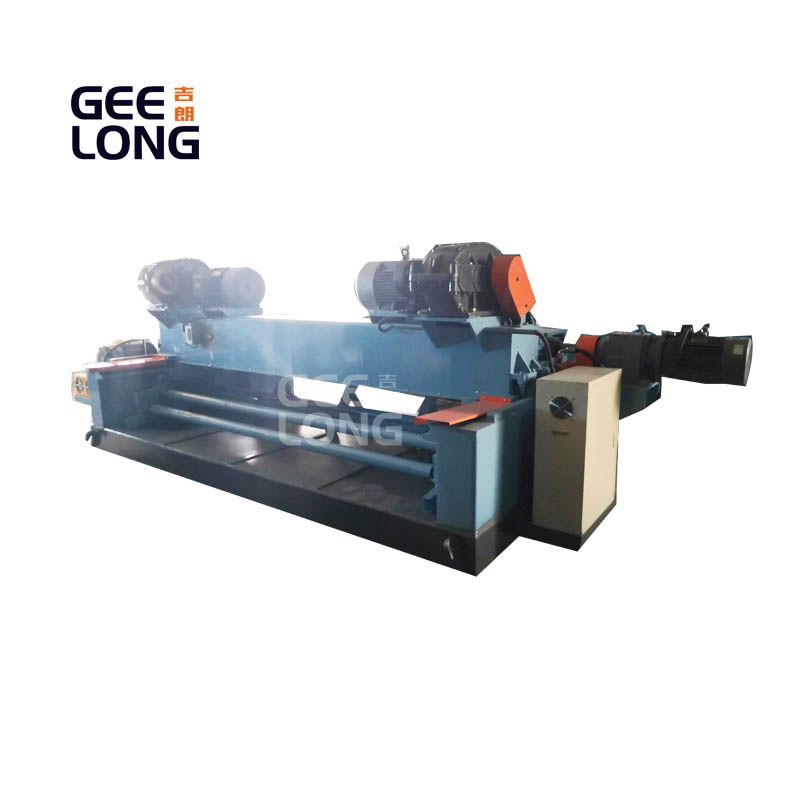

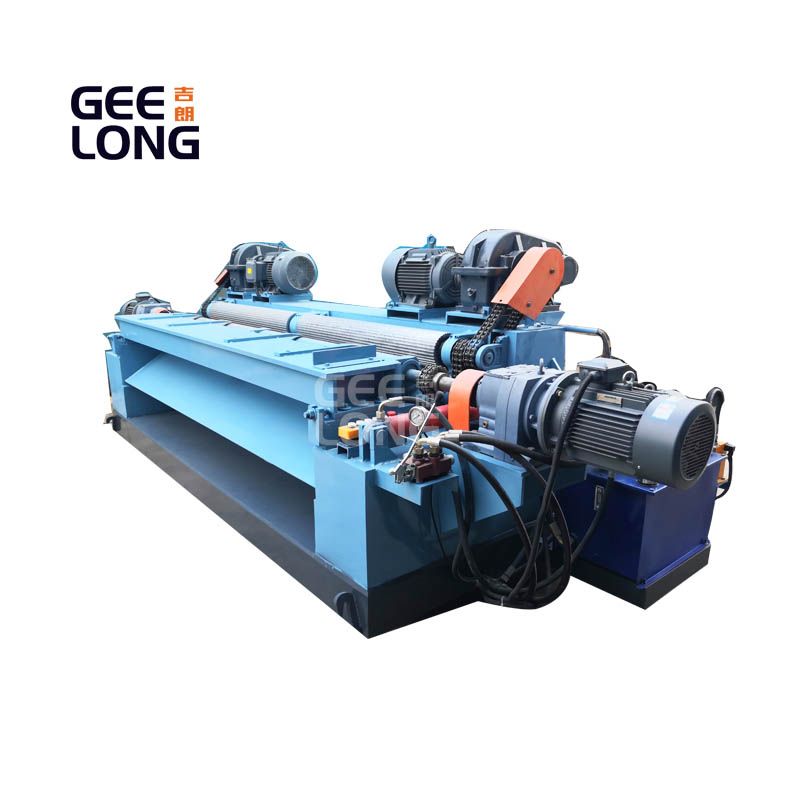

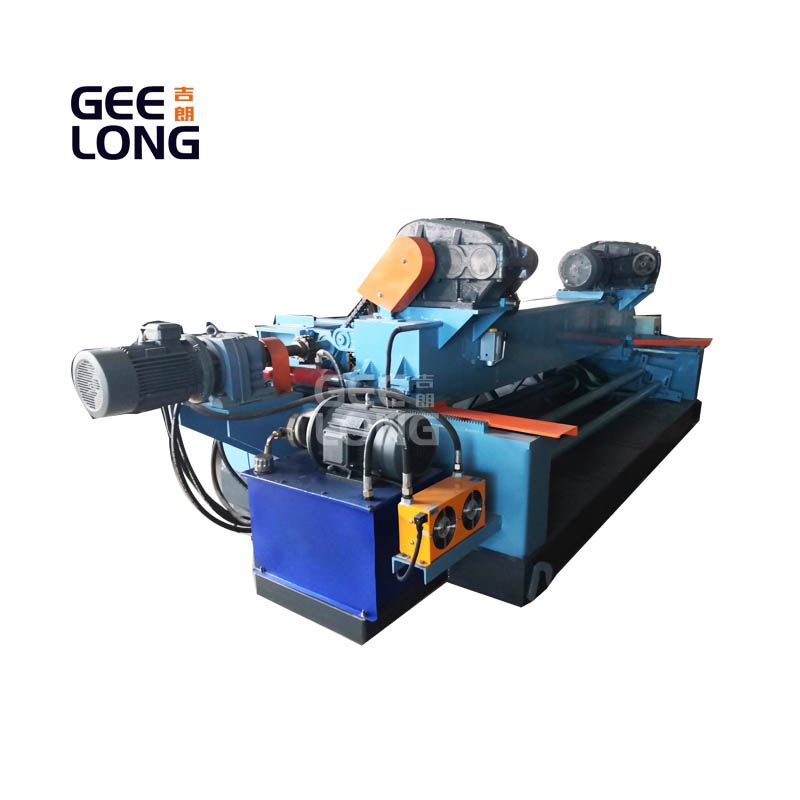

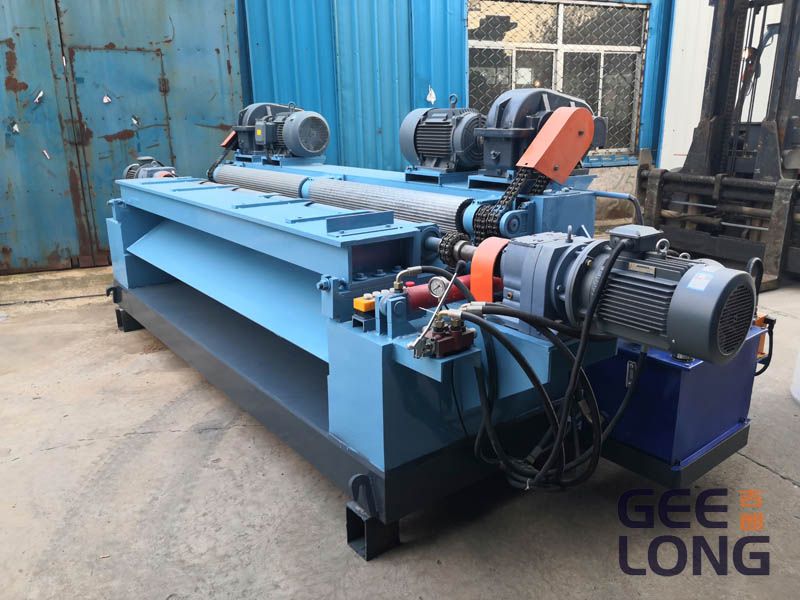

China GEELONG 8ft wood log debarker machine for sale

This 8ft wood log debarker machine has high efficiency, fast speed, low power consumption, simple structure, and is suitable for peeling requirements of different tree species. One wood log debarker machine can be used with two veneer rotary peeling machines.


WhatsApp: +86 157 5396 3153

wood log debarker machine is an important equipment for veneer production. The wood bark structure is loose and has no use value in the production of plywood. the direct Rotary cutting of the phloem of the bark is easy to block the knife gap of the veneer peeling machine and make the rotary knife blade blunt quickly, so the rotary cutting cannot operate normally; there are often debris and stones in the bark  such as direct rotary cutting will damage the rotary knife, Affect the normal rotary cutting and veneer quality. Therefore, the wood segment bark must be peeled before veneer rotary cutting.

This 8ft wood log debarker machine has high efficiency, fast speed, low power consumption, simple structure, and is suitable for peeling requirements of different tree species. One wood log debarker machine can be used with two veneer rotary peeling machines.

The maximum length is 2700mm, and the maximum diameter of the wood is 500mm. The wood log debarker machine needs to be customized if wood diameter is more 500mm and length is more than 2700mm.

Model No.GDB/4H
Wood length2600mm
Wood diameterΦ80-Φ500mm(customized)
Blade length2700mm
Thickness of veneer peeler1.0-3.0mm
Linear speed of host machine55m/min
Double roller diameter180mm
Single roller diameter150mm
Double roller motor power11kw*2pcs
Single roller motor power7.5kw*2pcs
hydraulic station motor power7.5kw
Total power44.5kw
Total weight6500kg
Machine dimension5500*2100*1500mm
