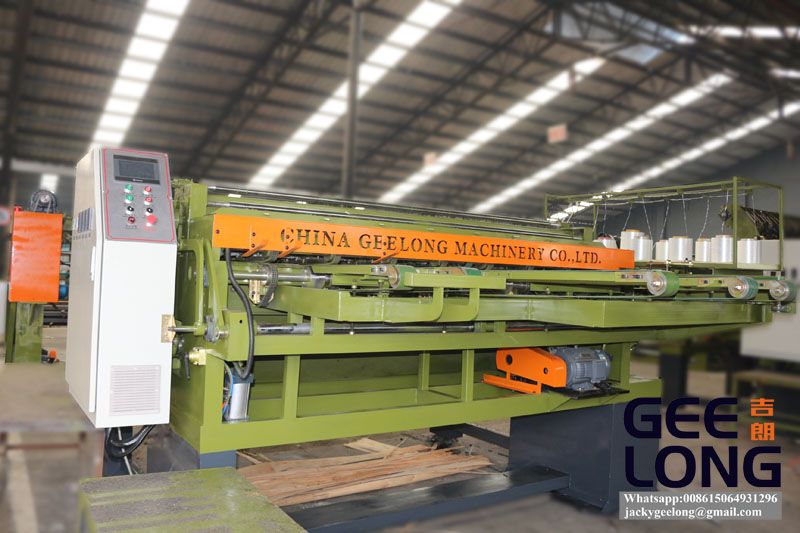

GEELONG 8ft core veneer builder machine

8ft core veneer builder machine is applied to commercial plywood, film faced plywood,construction plywood,LVL and flooring plywood manufacturer and so on

8ft core veneer builder machine working principle:

The core veneers (1.0-4.0mm thickness panels) after drying may have different length and thickness, and the shapes may get irregular, this core veneer composing machine can detect width, thickness, cavities of the core veneer , trimmed, glued, composed,cut to length and stacked automatically. With this machine, the core veneer with different sizes can be composed in one whole sheet.

8ft core veneer builder machine features:

1,PLC control,only one people operation,automatic production process,save labor quantity.

2,accurate detecting,minum cutting sides amount

3,precise servo positioning,no overlap and seamless

4,German Festo,Taiwan Delta,German Siemens,Japanese mitsubishi.

5,Special high-strength glue thread to enhance the longitudinal tension and flexibility of the product ,no board breaking

below is machine specification:

Capacity250pcs per hour
DriverServo-type
L*W*H12000mm*3900mm*2500mm
StructureIntegral steel plate cutting
Transmission speed0-35m/minute adjust
Working efficiency320pcs/h(finished board W*L:2600mm*1300mm)
Jointing machine length(mm)3600mm
Jointing machine width (mm)3900mm
Jointing machine height (mm)2500mm
Collecting machine length(mm)4000mm
Collecting machine width(mm)2200mm
Collecting machine height(mm)2300mm
Max working width(mm)2650mm
Max working length(mm)1450mm(adjust)
PLC computer moduleTDATDA(Tai wan)PLC
Total weight6300kg
Total power18.5kw
Front driverSEIMENS servo motor 4.5kw
Rear driverSEIMENS servo motor 5.0kw
Edge cutter driverMotor+ CHAIN TAIL clutch (Taiwan)
Front drive reducerStar type reducer 14.8/301(Tai wan CHICHENG)
Rear drive reducerStar type reducer 14.8/301(Tai wan CHICHENG)
Rotary actuatorFESTO(Germany)
Water cooling air conditionYES
Electric lateral platformYES
4*4-4*8 electric conversionYES
Automatic oilerYES
Put board Elevator-platformYES
Speed controlYES
Finished panel CounterYES
