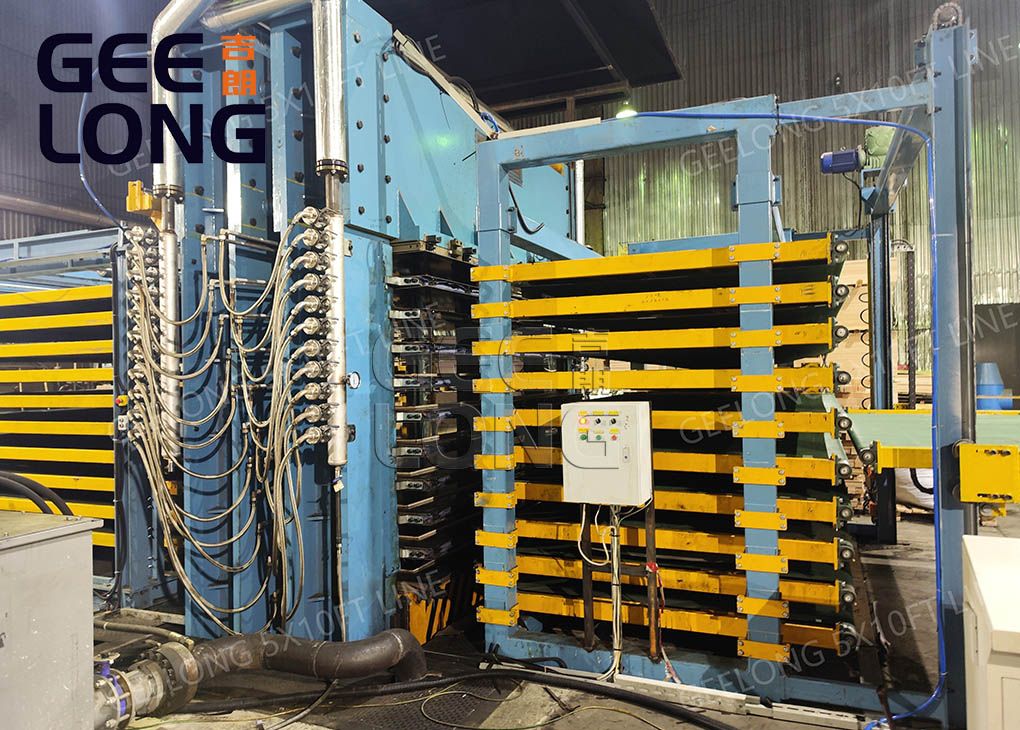

Automatic 5X10FEET Film Face Plywood Hot Press Machine

WhatsApp: +86 157 5396 3153 E-mail: lee@geelonggroup.com

Inquire Now None

Machine name	Machine function
Full automatic film face plywood hot press machine	This plywood film face hot press machine, used to do the lamination on the plywood surface with film face paper， also can do the lamination with the melamine paper also, this line it is automatic line, just need one/two staff to place the film faced paper on the plywood paving conveyor
Finished board size	1525x3050MM film faced plywood
Output of this film face hot press line	90-100 PCS/HOUR, capacity depend on the hot pressing time
Automatic equipment for the film face hot press line	other equipment working speed can meet the hot press machine working speed.
Whole film face hot press line machine components list as below:

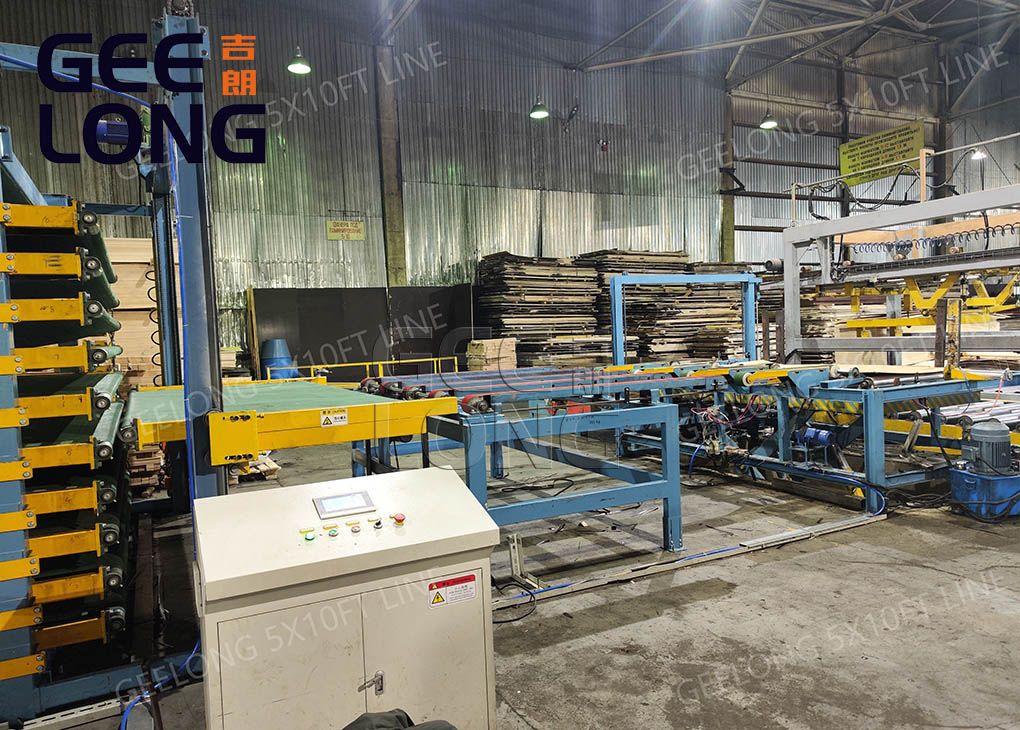

NO.1 5x10FEET	powered ground roller conveyor

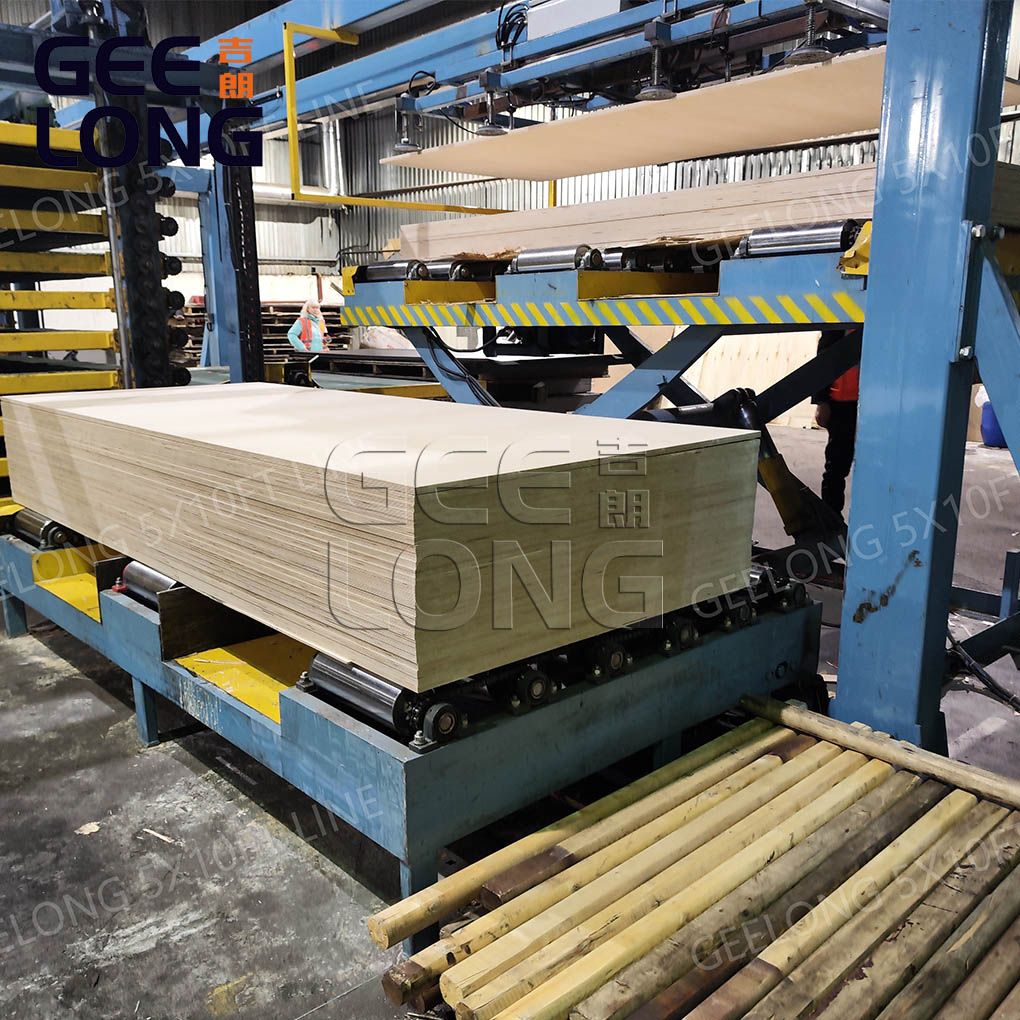

NO.2 5x10FEET	board lifter machine with powered roller

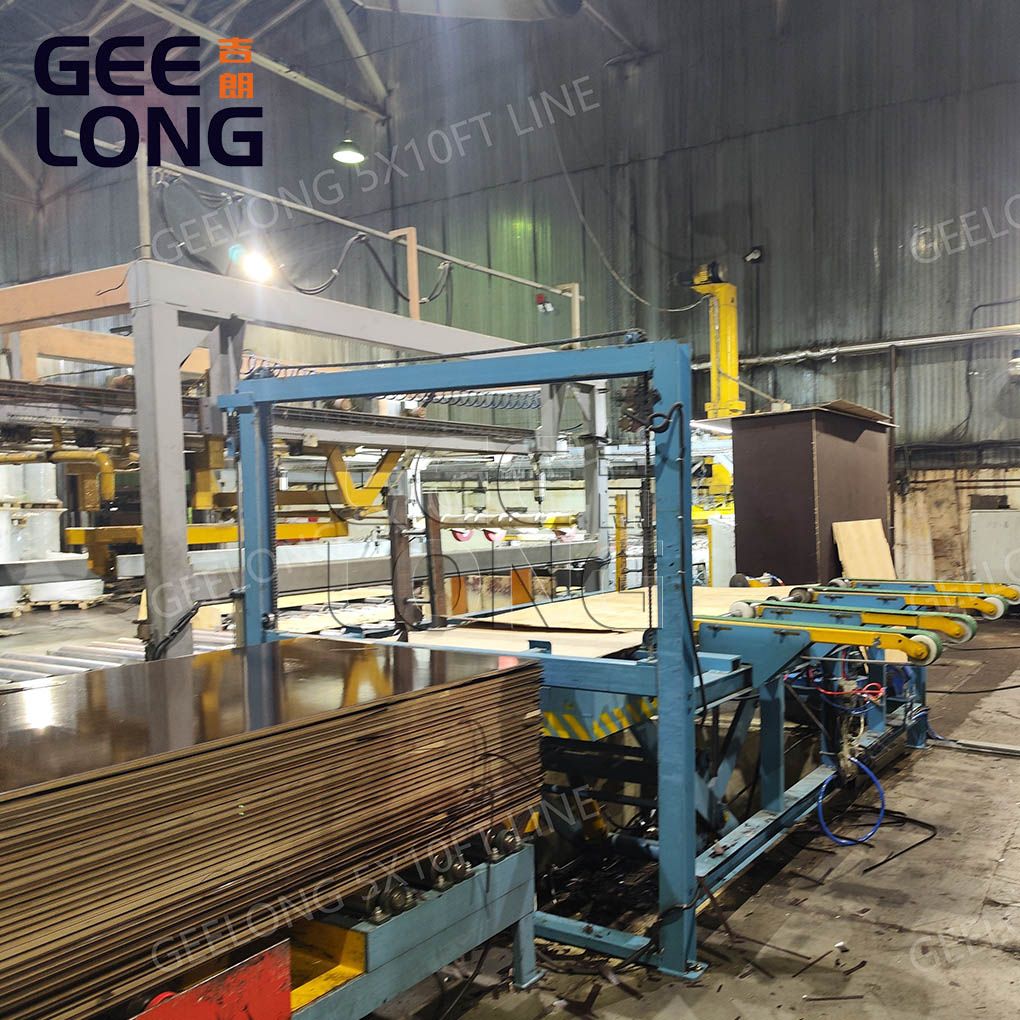

NO.3 5x10FEET	vacuum loader with board positioning function

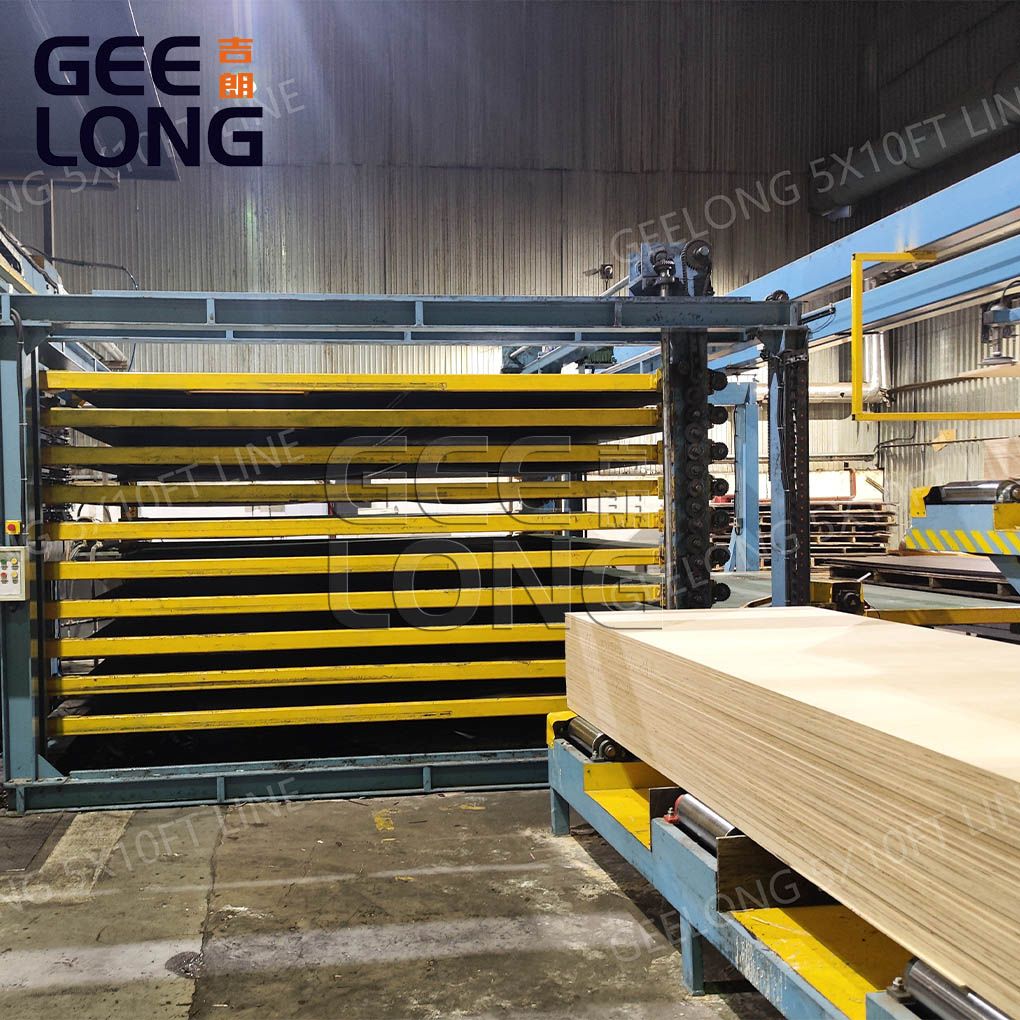

NO.4 5x10FEET	10 layers belt loader machine SERVO TYPE HEAVY DUTY
NO.5 5x10FEET	10 layers air blowing waste system for each layers paper edge waste, after this, then load new paper and board

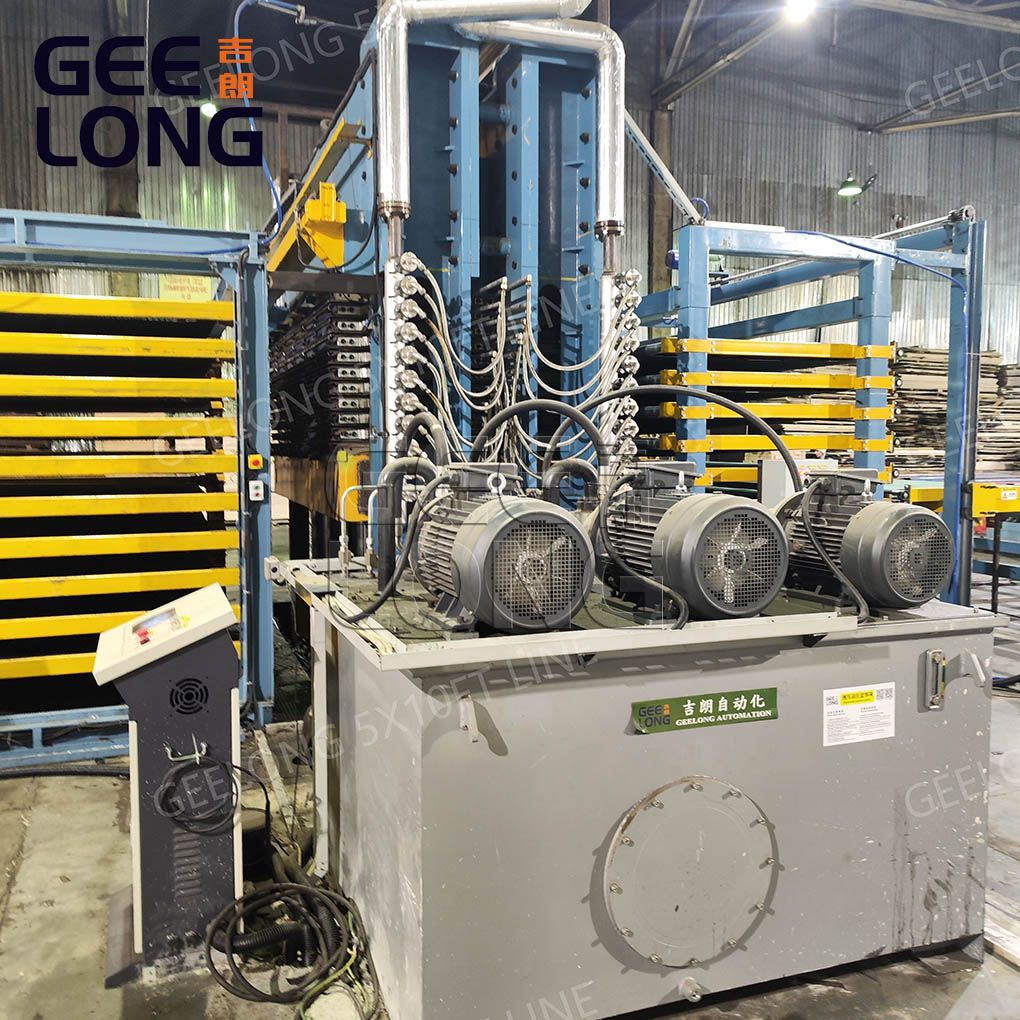

NO.6 5x10FEET	10 layers 1600T plywood hot press machine
NO.7 5x10FEET	10 layers belt unloader machine
NO.8 5x10FEET	board outlet conveyor

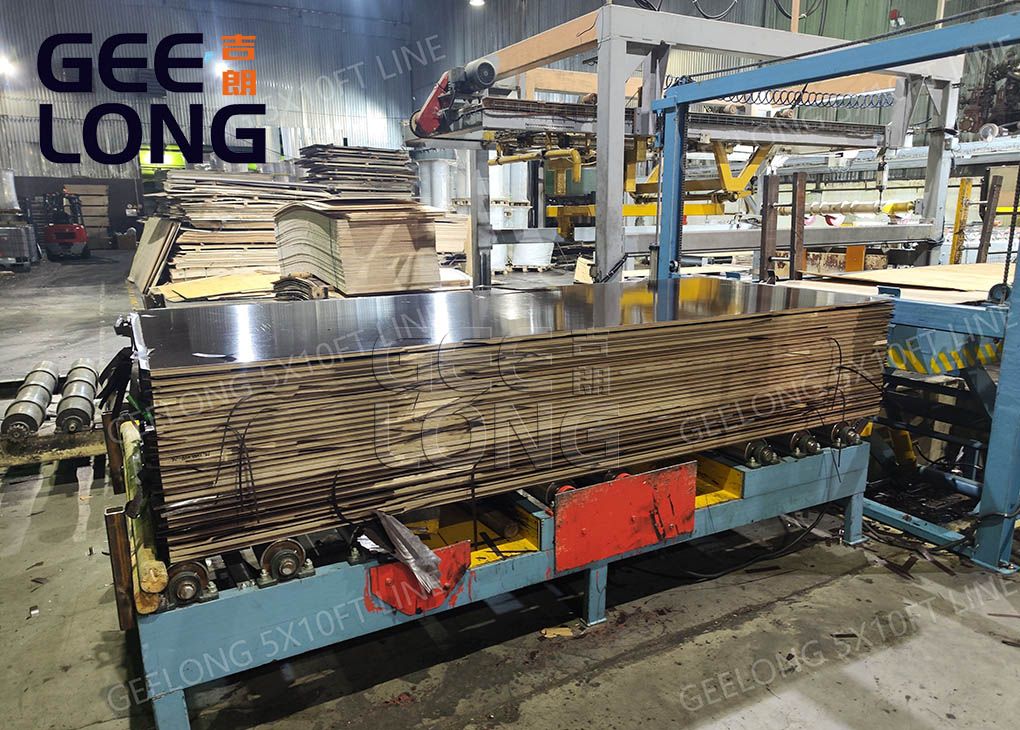

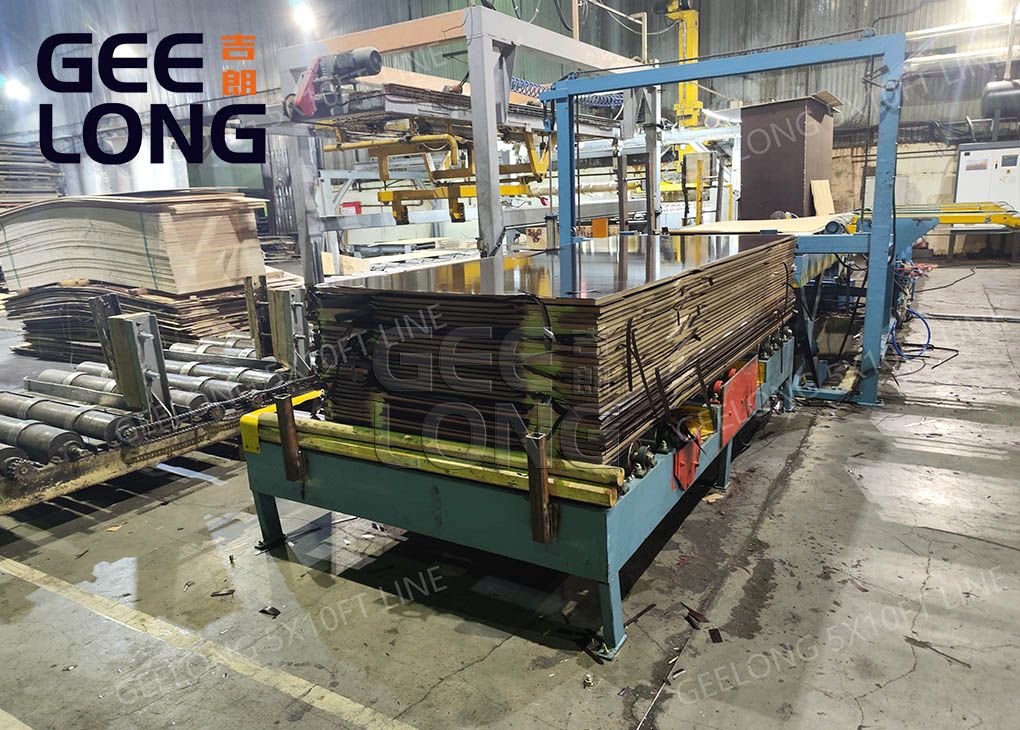

NO.9 5x10FEET	stacking station

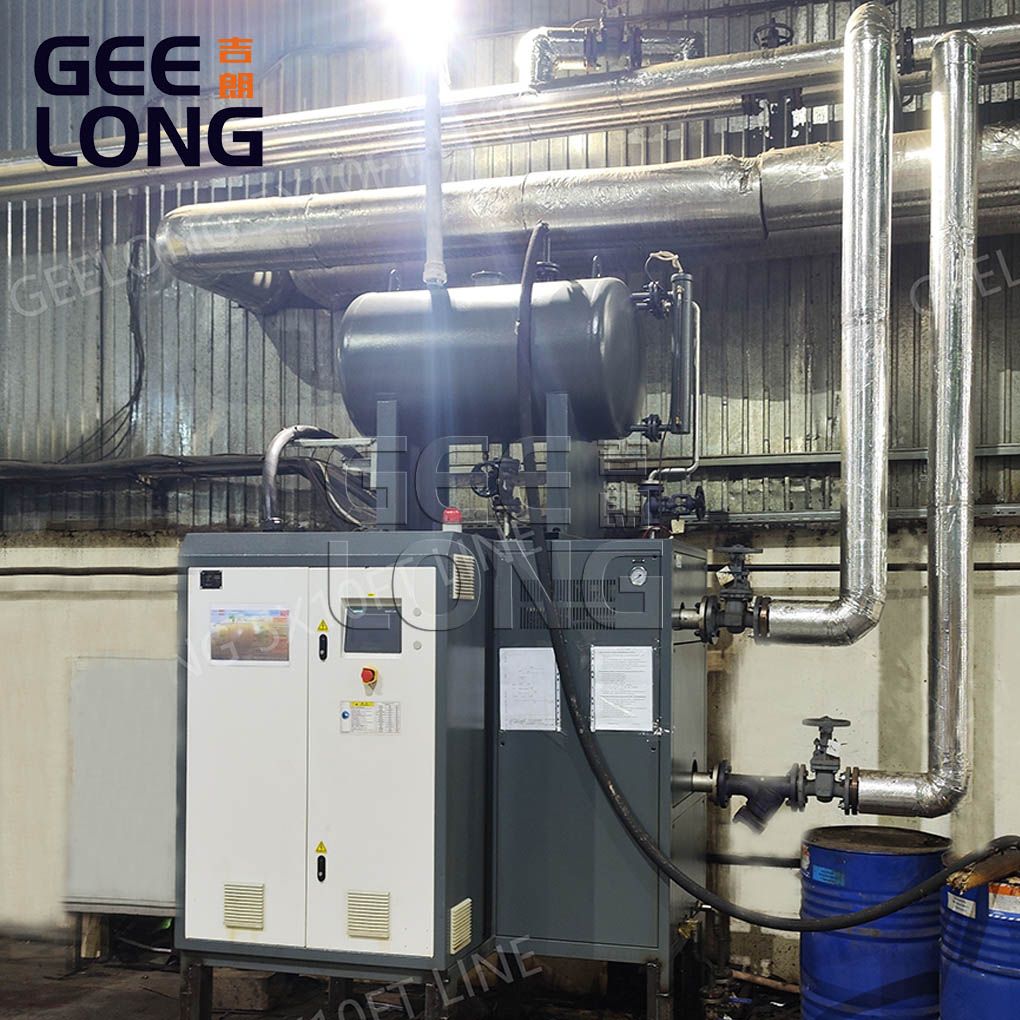

NO.10	electrical heating boiler to connect with hot press maachine
NO.11	other stainless steel plate, buffering cushion pad for assembly for the hot press machine
