Automatic Film Face Plywood Hot Press Machine

WhatsApp: +86 157 5396 3153 E-mail: lee@geelonggroup.com

Inquire Now Next Product

Machine name	Machine function
Full automatic film face plywood hot press machine	This plywood film face hot press machine, used to do the lamination on the plywood surface with film face paper， also can do the lamination with the melamine paper also, this line it is automatic line, just need one/two staff to place the film faced paper on the plywood paving conveyor
Output of this film face hot press line	90-100PCS/HOUR, capacity depend on the hot pressing time
Automatic equipment for the film face hot press line	other equipment working speed can meet the hot press machine working speed.

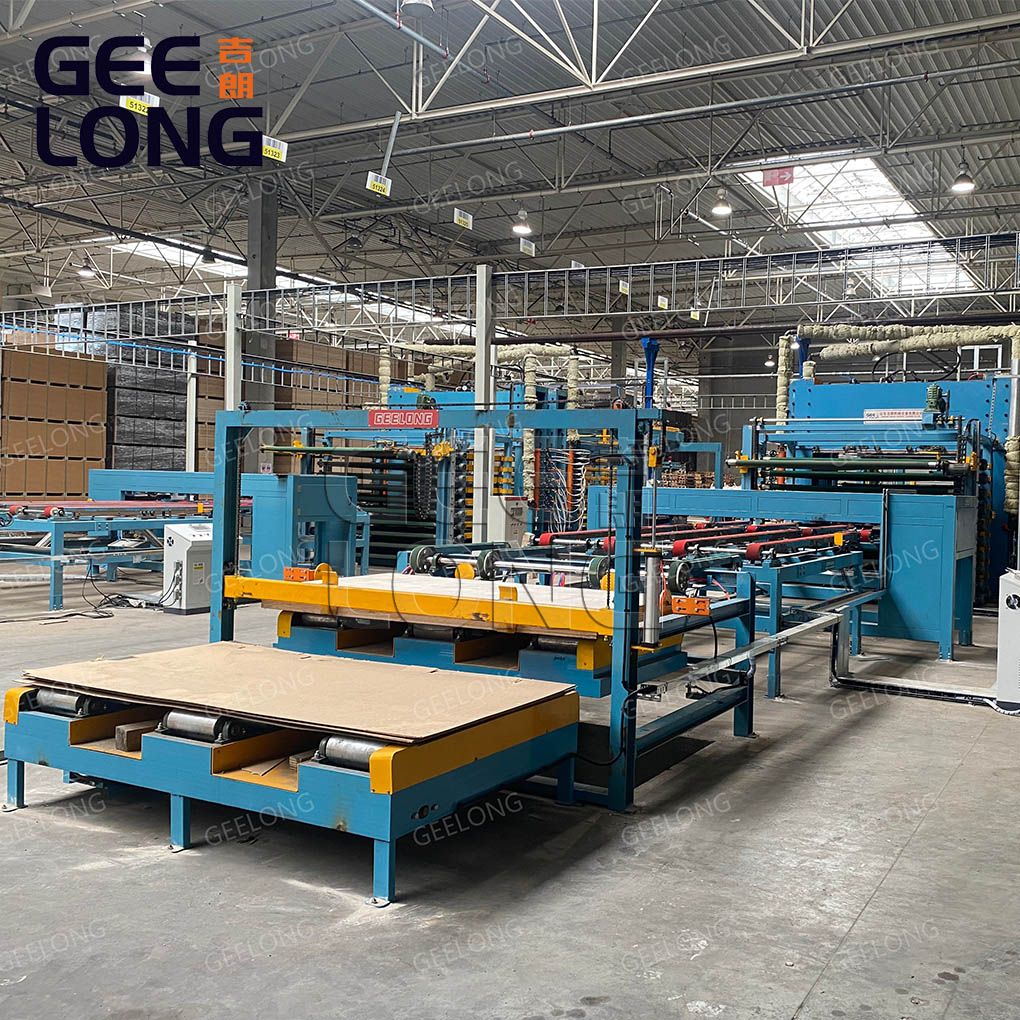

Whole film face hot press line machine components list as below:
NO.1	powered ground roller conveyor
NO.2	board lifter machine with powered roller
NO.3	vacuum loader with board positioning function
NO.4	10 layers belt loader machine SERVO TYPE HEAVY DUTY
NO.5	10 layers air blowing waste system for each layers paper edge waste, after this, then load new paper and board

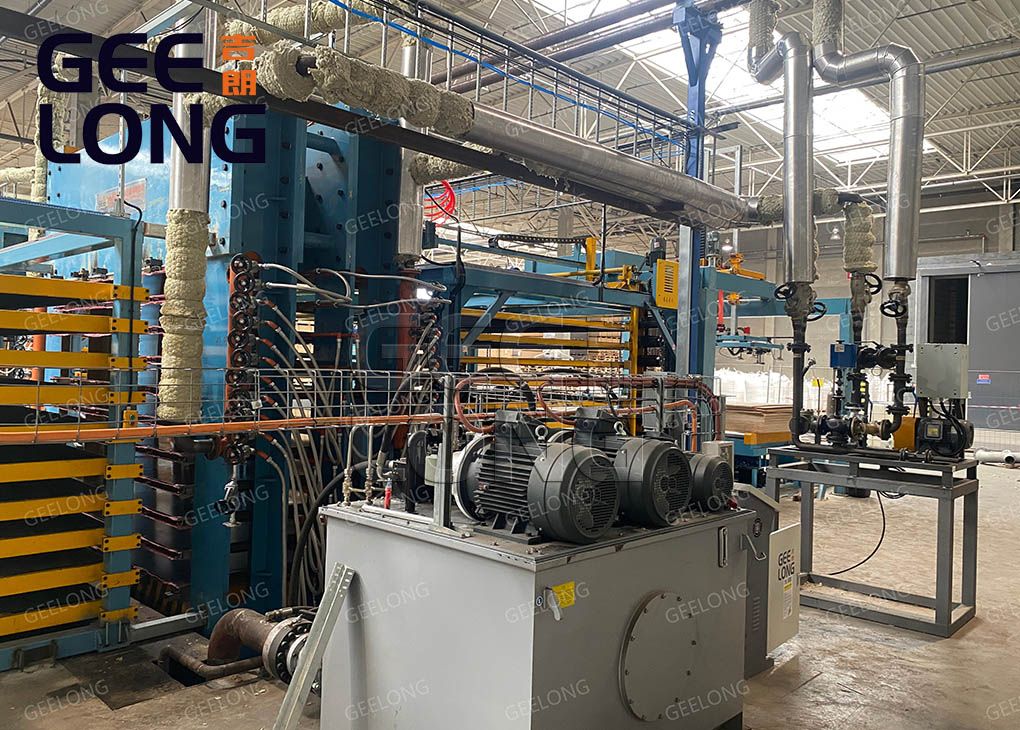

NO.6	10 layers 1000T plywood hot press machine
NO.7	10 layers belt unloader machine
NO.8	edge trimming machine
NO.9	overturning machine for board double side checking
NO.10	grade A stacking stations
NO.11	electrical heating boiler to connect with hot press maachine
NO.12	other stainless steel plate, buffering cushion pad for assembly for the hot press machine
